Bus Shelter

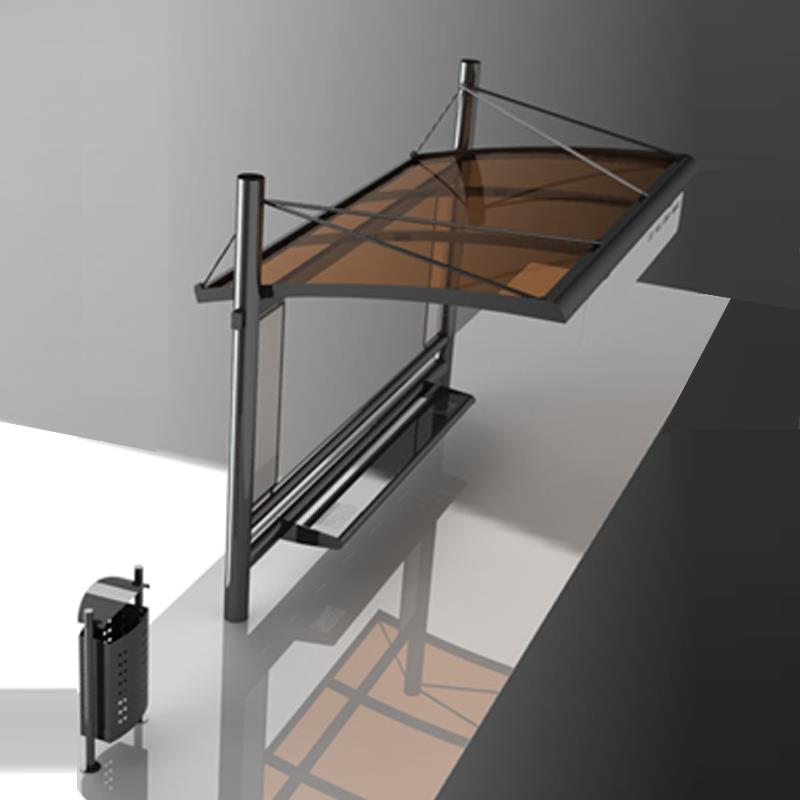

Fabrication, Supply and Installation of Stainless Steel 304 grade Bus Shelter of size (10 ft x 6 ft), with roof made of SS truss
Multilayer polycarbonate sheets supported on two SS 304 grade pillars of dia 141 mm and tension pipes.
A Stainless Steel bench of size 300 x 2430mm mounted on SS pipe of dia 141mm is supported between the two SS pillars
A name plate of size 300 X 2430mm made of SS 304 grade is hung from the roof on which vinyl printed graphics will be done on site.
A 55 watts, CFL light fixture with IP 67 protection of airfall will be fitted on the roof truss.
S.S dustbin will be installed separately on the ground.

Model no:	OZ-BQS-TNRD-625
B.Q.S SIZE
DISPLAY DISCRIPTION
NAME	USE	SPEC	AREA (sqm)
Name plate	public notice	Non illuminated
Middle signage	commercial	back lit
Left signage	commercial	back lit
Right	commercial	back lit
Total area commercial
Total area public notice

Supply and installation of stainless steel (grade -304) bus shelter of size (10 ft x 6 ft) , with roof made of ss truss and multiwall polycarbonate sheets supported on two S.S -304 grade pillars of dia 141 mm and tension pipes. A stainless steel bench of size (300 x 2430) mounted on ss pipe of dia 141 is supported between the two S.S pillar. A name plate of size (300 X 2430) made of S.S 304 grade is hung from the roof on which vinyl graphics will be done on site. A 55 watts, cfl light fixture ,with ip 67 protection of airfal will be fitted on the roof truss. S.S dustbin will be installed separately on the ground.
