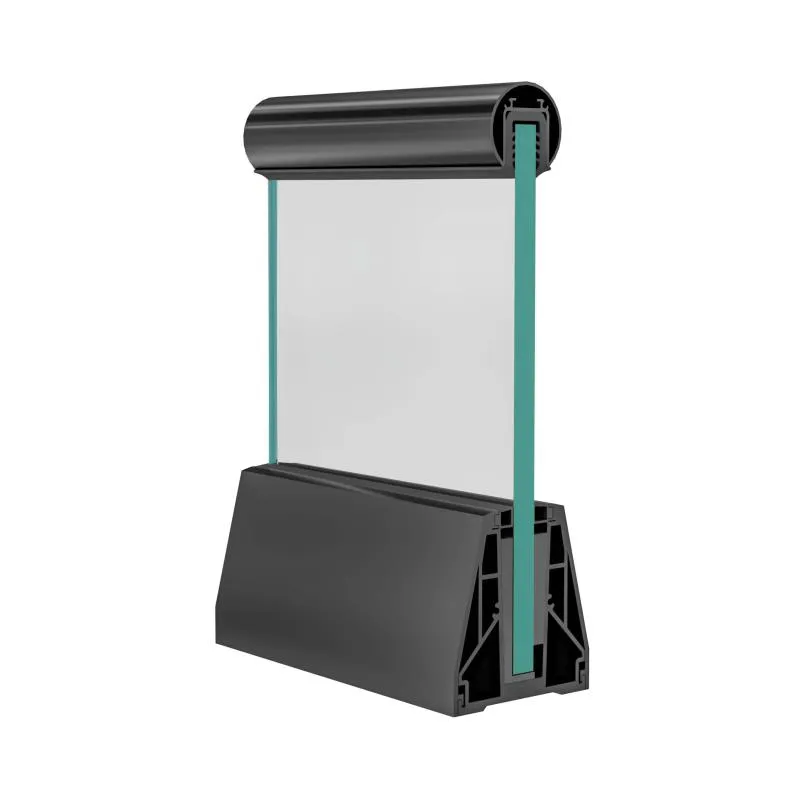

New Clear Line
New Clear Line
OZRCL-88x81MM BKT BM
88mm (H) x81mm(W) Aluminium Bracket with Side Cover
Color
- Glass panels provide clear and uninterrupted views.
- Glass type, height, and thickness can be customized.
- Wind load tested according to structural requirements.
- Full or segmented railing design options available.
- Glass Thickness: 12 mm.
- Material: Aluminium 6063 grade
- Standard Length: 65mm for Bracket & Cover 3mtr.
- Made from best exterior aluminum grade 6063.
- Inserts are made of high grade nylon which is temperature and weather resistance.
- Micro wave cured weather resistance epdm gasket.
- High quality powder coating options available.
- For G-4 floor buildings
- Ledge height 100-150mm, ensuring top rail height 900-100mm from floor
- Heavy-duty construction for enhanced safety and glass support
| New Clear Line System | Qty |
|---|---|
|
New Clear Line
SKU Code
:
OZRCL-88x81MM-BKT-SL-SL
|
Pieces
|
|
New Clear Line
SKU Code
:
OZRCL-88x81MM-BKT-SL-BM
|
Pieces
|
(* Taxes, Freights, Insurances will be charged extra.)
The Clear Line Systems are designed to eliminate the requirement for vertical support to the railing. This system, also known as the Shoe System Railing, supports the glass from the bottom when inserted into it. Different systems are designed based on the application area of the railing, glass type, height and thickness. Again, these systems are tested for various wind loads as per international specifications and requirements. The railing can be both full rail profile or segmented with a cover. The aluminium system can easily be powder coated and anodized in various finishes.
