OEC451-B2S-SCN C8 NP

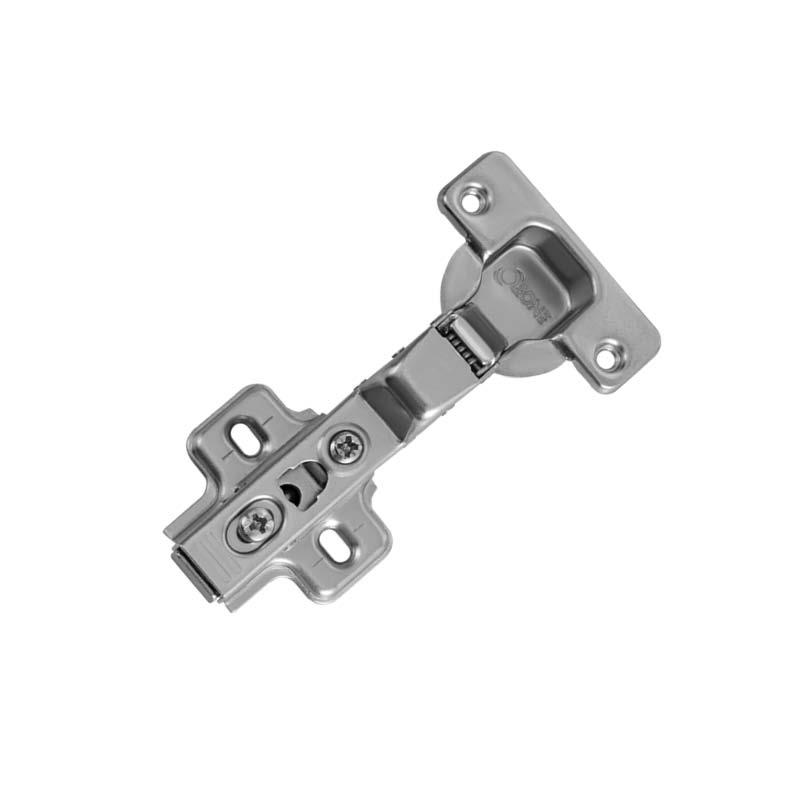

SOFT CLOSE CLIP-ON HINGE WITH 2 HOLE MOUNTING PLATE
OEC451-B2S-SCN C8 NP
Finish
• Opening Angle: 95°
• Door Thickness: 14-24mm
• Soft Close Clip-on
• Finish: Nickel Plated
• 40,000 Cycle Tested
• 48 hrs Salt Spray Tested
•Soft close mechanism
•Hinge equipped with 2 hole clip-on mounting plates
•Range of door thickness: 14-24mm
•Cup diameter: 35mm
•Cup height: 10mm
•3D Adjustment: Overlay +2/-4mm; Depth +/-2mm; Height +/-2mm
•Supplied with screws and arm and cup cover caps
- Hotels
- Shops
- Offices
- Residential
- Airports
- Hospitals
| SOFT CLOSE CLIP-ON HINGE WITH 2 HOLE MOUNTING PLATE | Qty |
|---|---|
|
SOFT CLOSE CLIP-ON HINGE WITH 2 HOLE MOUNTING PLATE
SKU Code
:
OEC-451-B2S-SCN-C8-NP
Item Code: - |
Pieces
|
|
SOFT CLOSE CLIP-ON HINGE WITH 2 HOLE MOUNTING PLATE
SKU Code
:
OEC-451-C2S-SCN-C15-NP
Item Code: - |
Pieces
|
(* Taxes, Freights, Insurances will be charged extra.)
